21. Earthranger events¶

21.1 0. Creating an EarthRanger Access Token¶

Before adding EarthRanger settings in Africa Rangeland Watch, you will need an access token from the EarthRanger Administration panel.

21.1.1 Step 1 – Log into EarthRanger Administration¶

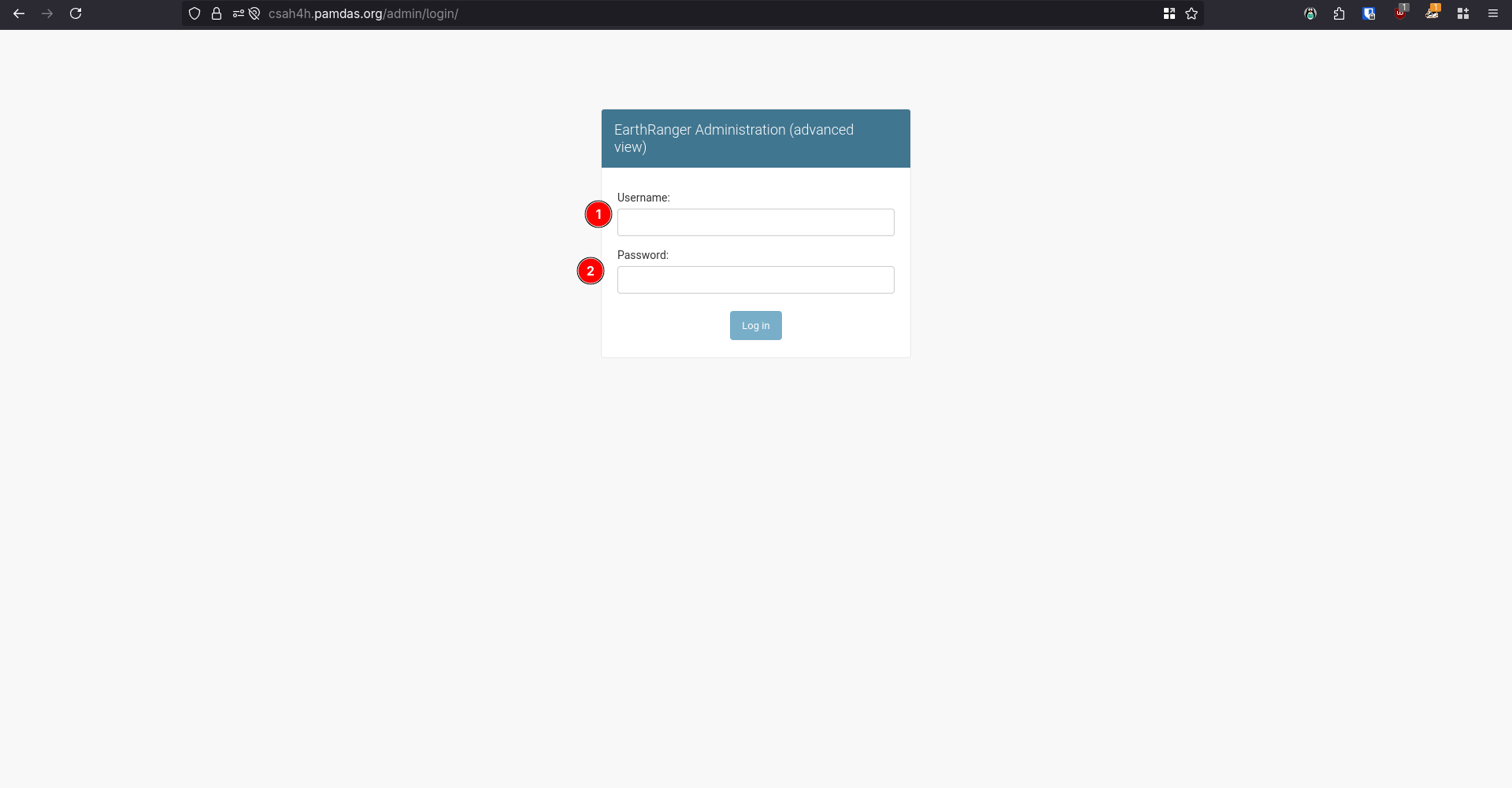

1. Go to your EarthRanger Admin URL in a browser.
2. Enter your Username (1️⃣) and Password (2️⃣), then click Log in.

---

---

21.1.2 Step 2 – Open DAS Access Tokens¶

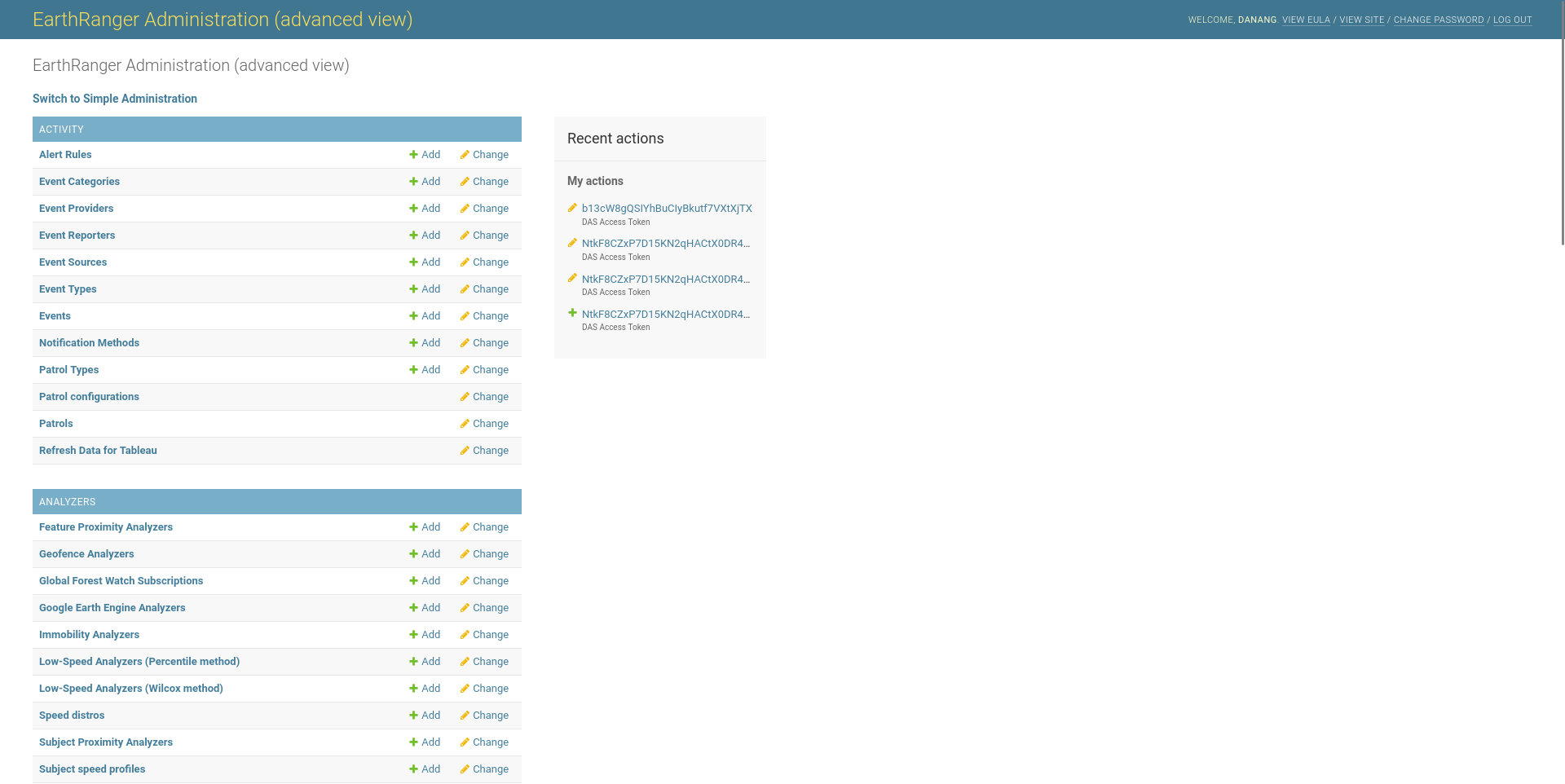

1. In the dashboard, scroll to the DAS Configuration section.

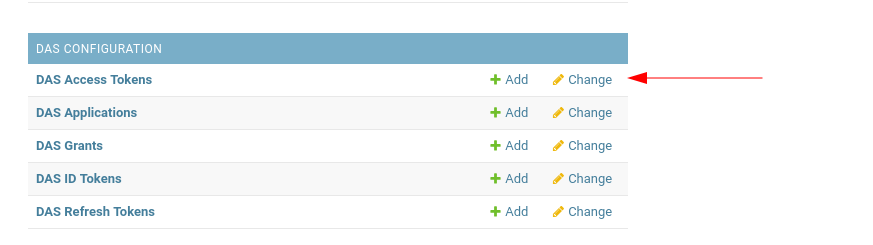

2. Click Change next to DAS Access Tokens.

---

21.1.3 Step 3 – Add a New Token¶

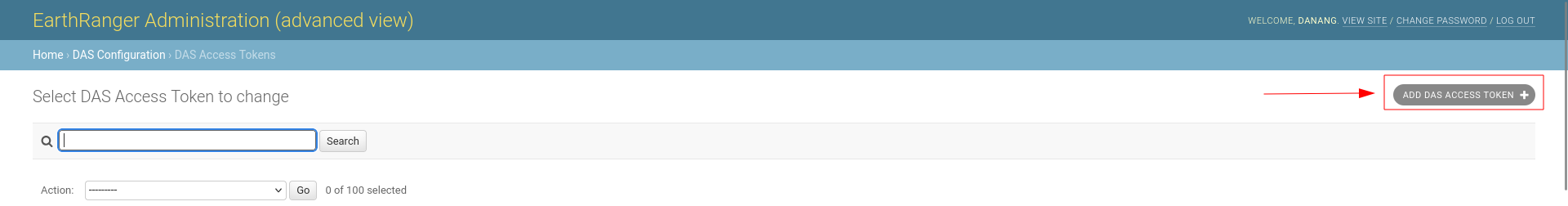

1. On the DAS Access Token page, click Add DAS Access Token in the top right corner.

---

21.1.4 Step 4 – Fill in Token Details¶

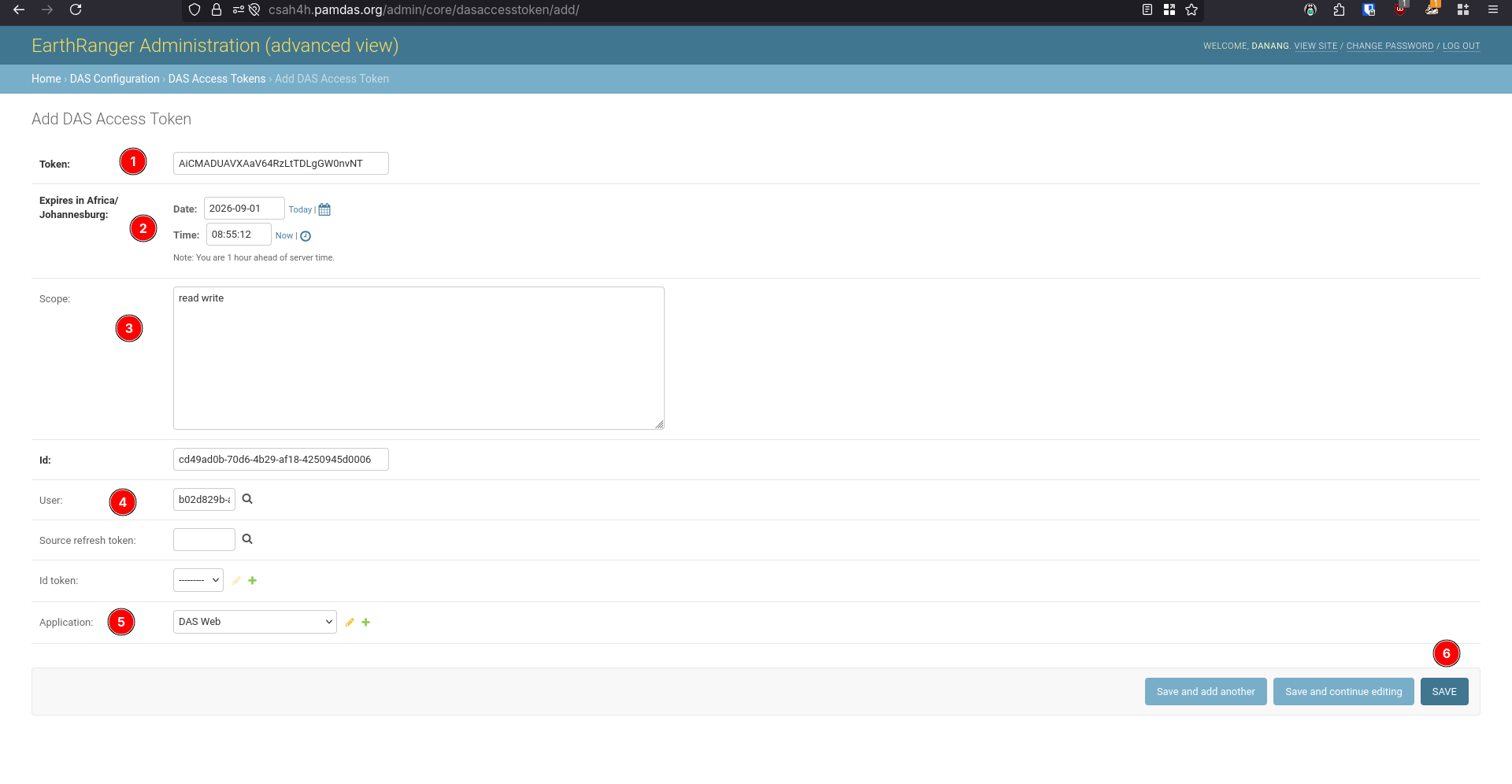

On the Add DAS Access Token page, fill out: 1. Token (1️⃣) – Your generated token string.
2. Expires in (2️⃣) – Set the expiry date and time.
3. Scope (3️⃣) – Define access permissions (e.g., read write).
4. User (4️⃣) – Select the associated user.
5. Application (5️⃣) – Choose the application this token is for (e.g., DAS Web).
6. Click Save (6️⃣) to store the token.

---

21.1.5 Step 5 – Verify Token Creation¶

Once saved, you should see the new token listed in the DAS Access Tokens table.

You can now copy this token and use it when creating a new EarthRanger setting in Africa Rangeland Watch.

21.2 1. Creating a New EarthRanger Setting¶

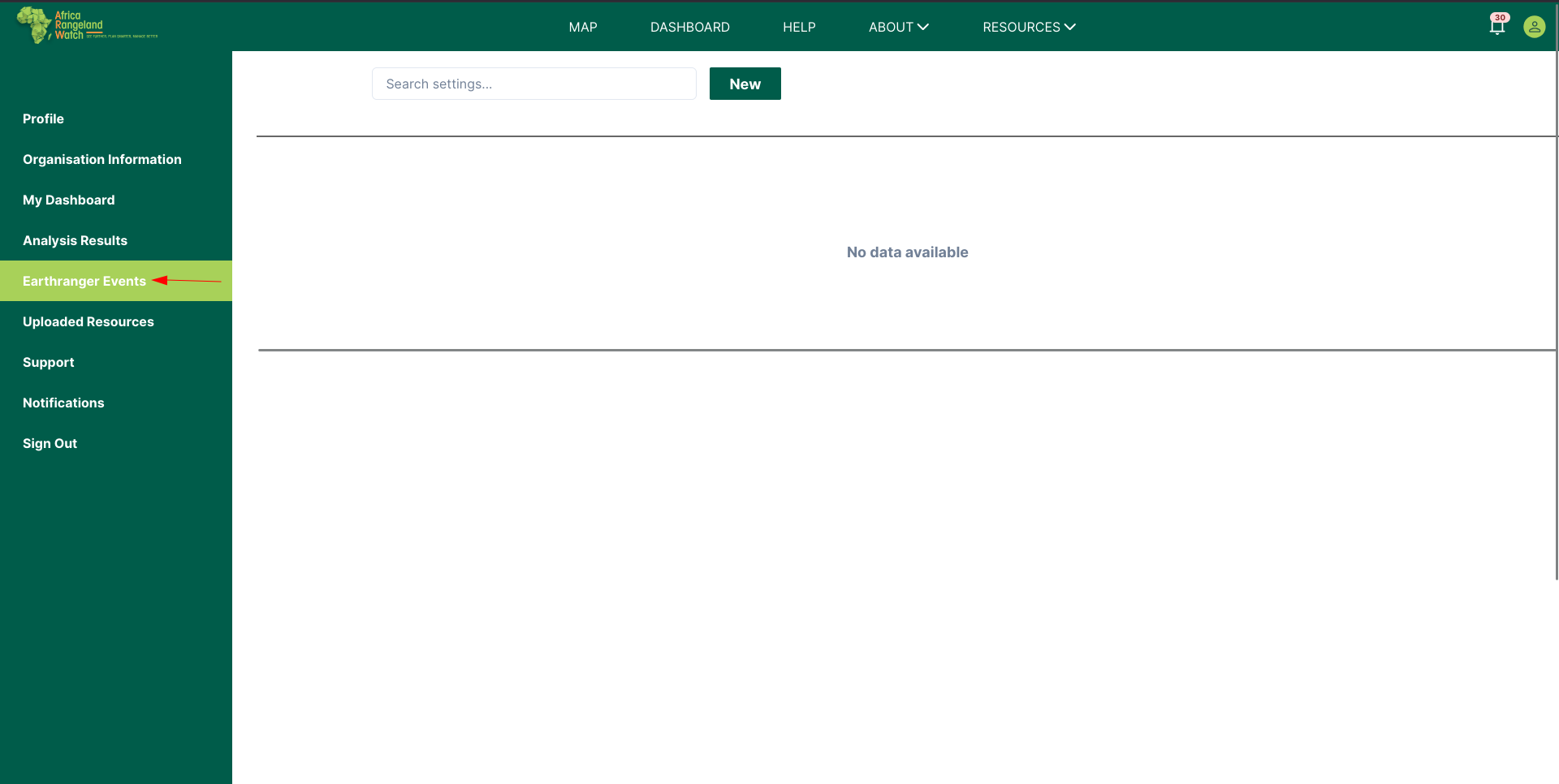

1. In the left-hand menu, click on 1️⃣ EarthRanger Events.


2. Click the New button to open the creation form.

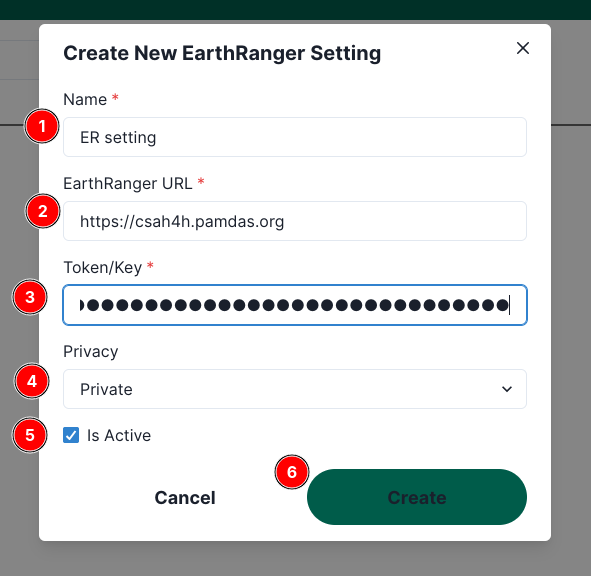

3. Fill out the form:
   - 1️⃣ Name – A label for your setting.
   - 2️⃣ EarthRanger URL – The URL to your EarthRanger instance.
   - 3️⃣ Token/Key – Your authentication token or key.
   - 4️⃣ Privacy – Choose Private or Public.
   - 5️⃣ Is Active – Tick to enable the setting immediately.
   - 6️⃣ Create – Click to save.

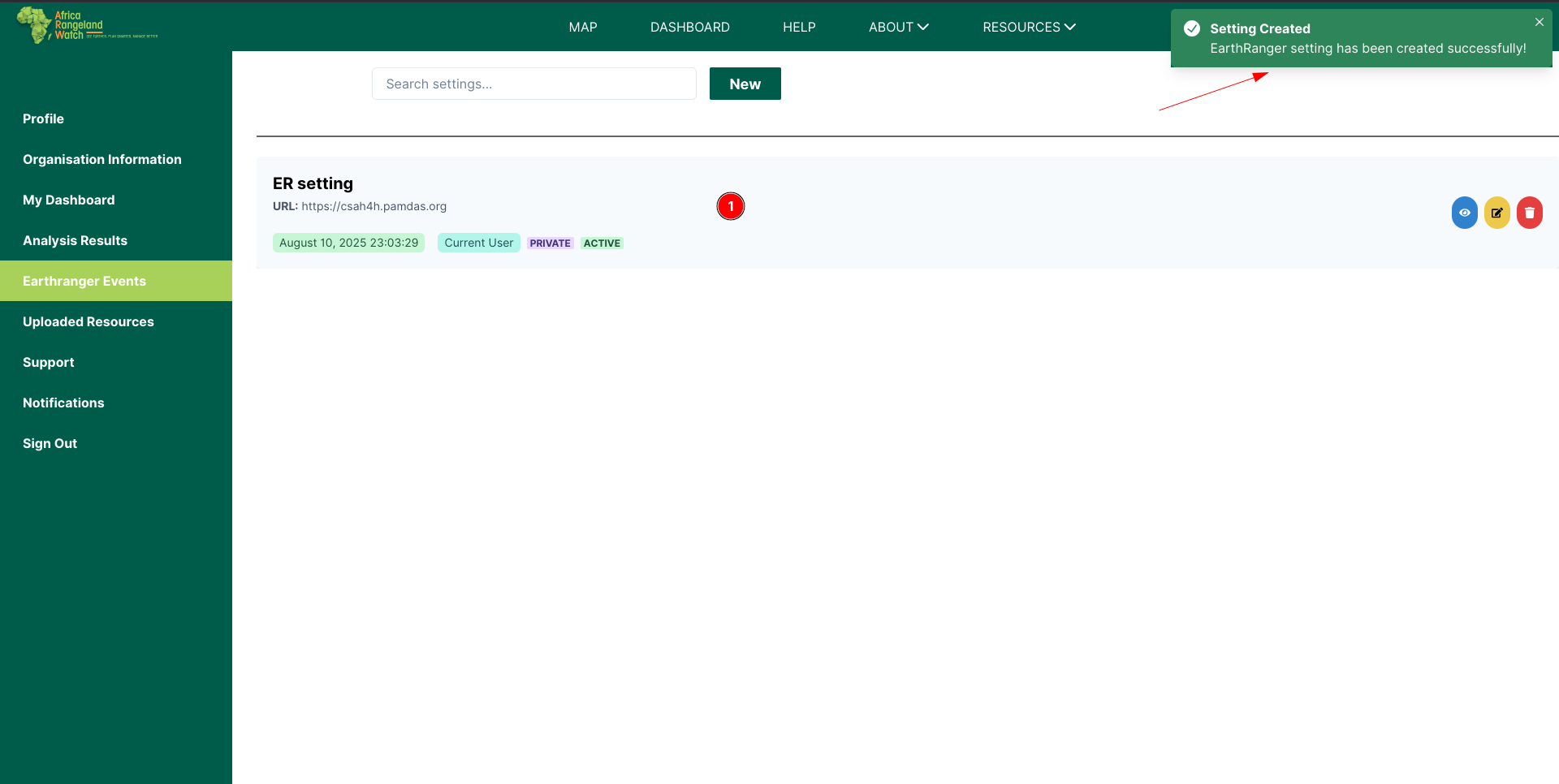

4. After creating, a success notification will confirm your setting has been added.


---

21.3 2. Managing Existing EarthRanger Settings¶

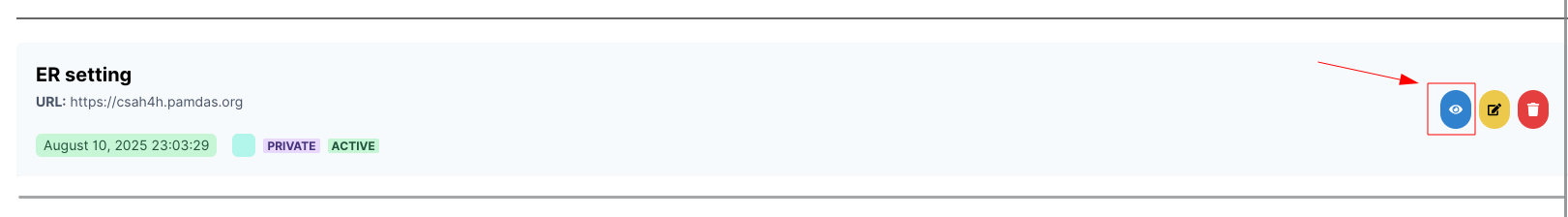

• View – Click the blue eye icon to see details.
• Edit – Click the yellow pencil icon to update the setting.
• Delete – Click the red trash icon to remove it.

---

21.4 3. Viewing the EarthRanger Event List¶

You can also view EarthRanger events in list format from the EarthRanger Events page.
The list shows:

• Event type
• Date/time
• Reporter
• Location
• Priority indicator

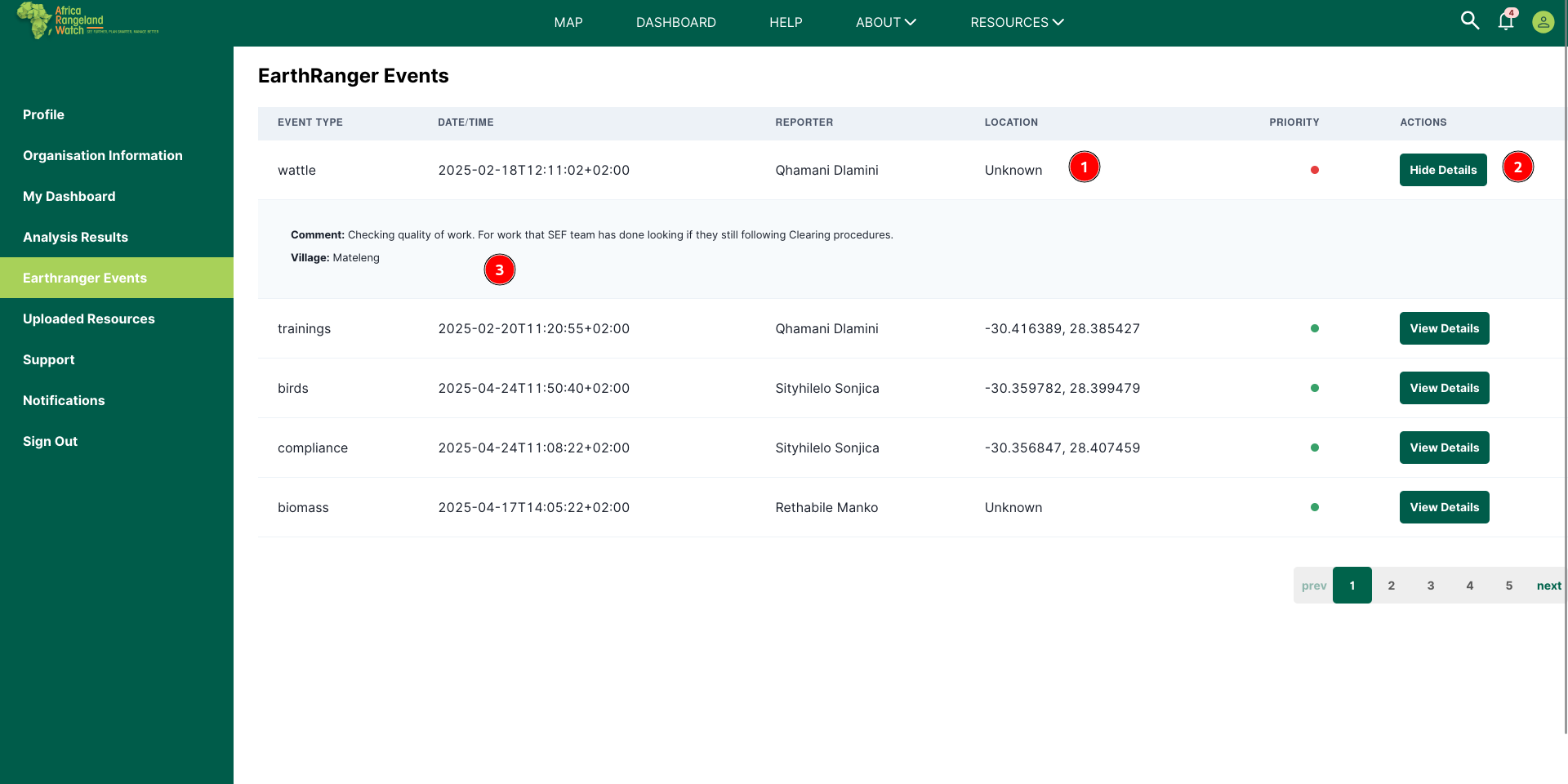

In the expanded view:

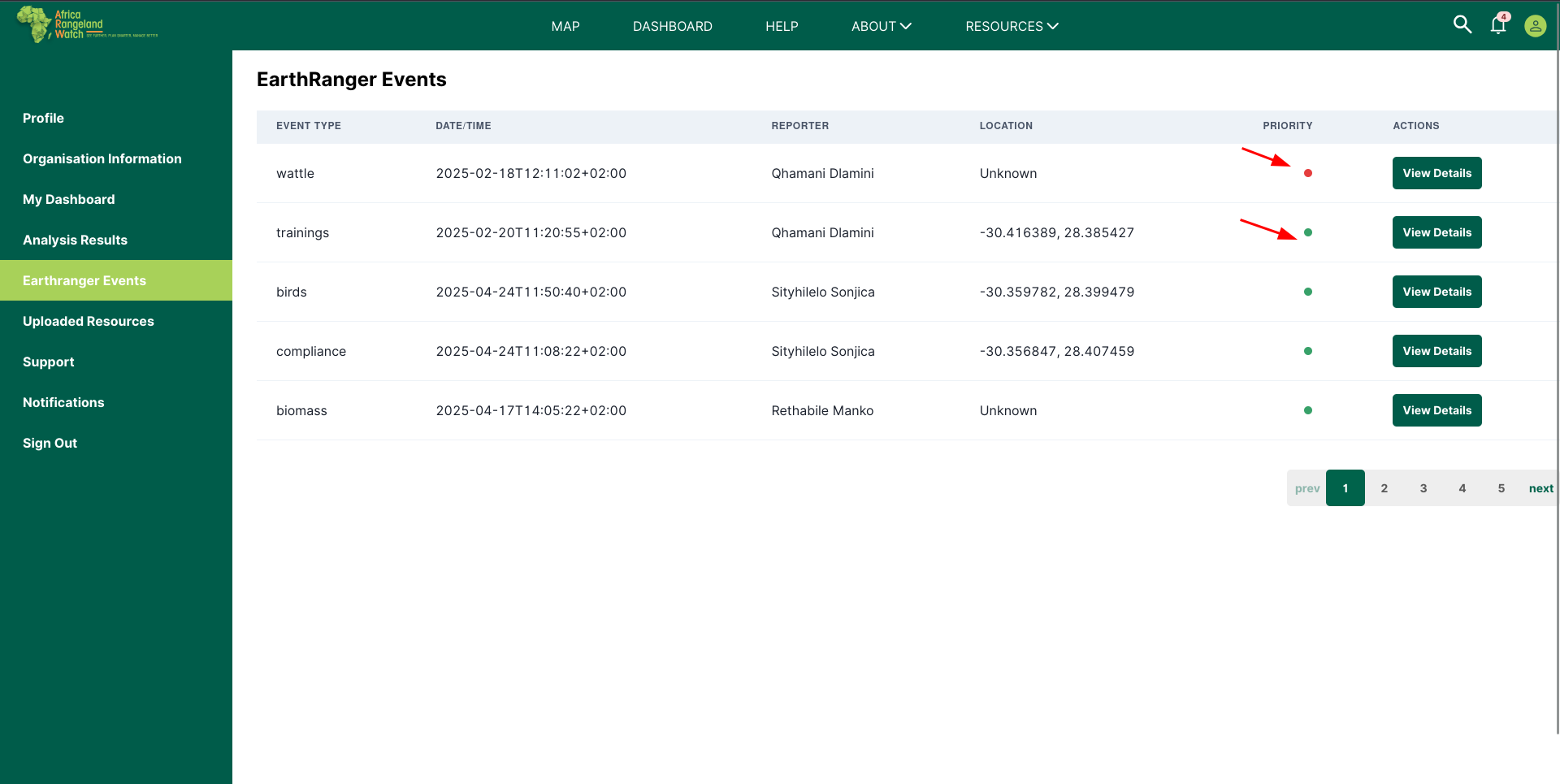

1. Priority Indicator (1️⃣) – A coloured dot showing the urgency level of the event:
   - 🔴 Red – Low or no priority.
   - 🟢 Green – High priority.

2. Action Button (2️⃣) – The Hide Details button collapses the expanded view and returns to the default table view.

3. Additional Information (3️⃣) – Contextual details about the event:
   - Comment – Notes or description provided by the reporter, explaining the context or purpose of the event.
   Example: “Checking quality of work. For work that SEF team has done looking if they still follow clearing procedures.”
   - Village – The nearest settlement or community to the event location.

---

21.5 4. Enabling EarthRanger Events on the Map¶

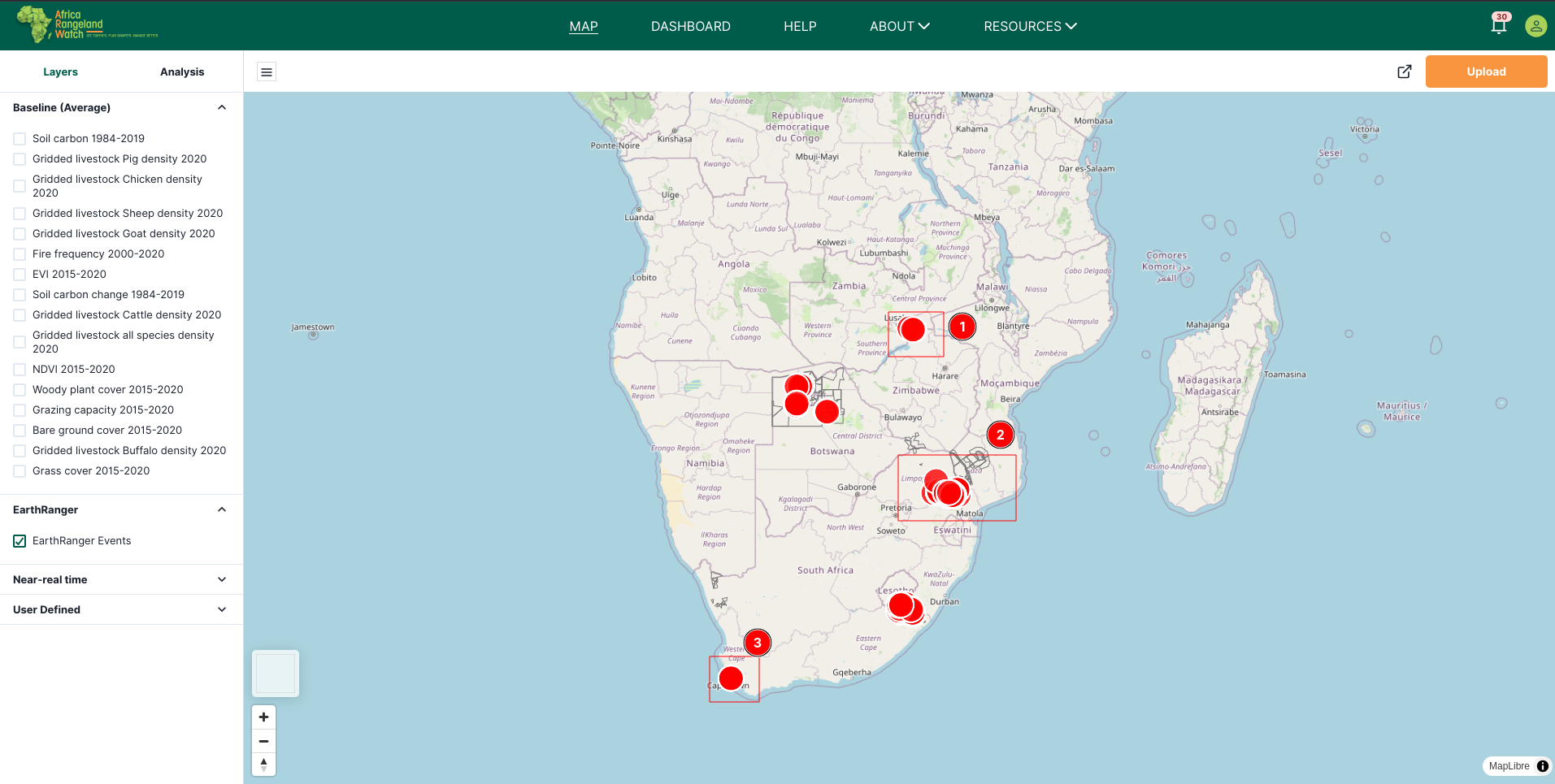

1. Go to the Layers tab.

2. Expand the EarthRanger section and tick EarthRanger Events.


3. The map will display clusters of event locations.


---

21.6 5. Viewing Event Details¶

To view more information about an event:

1. Click on the EarthRacnger poinst on the map.

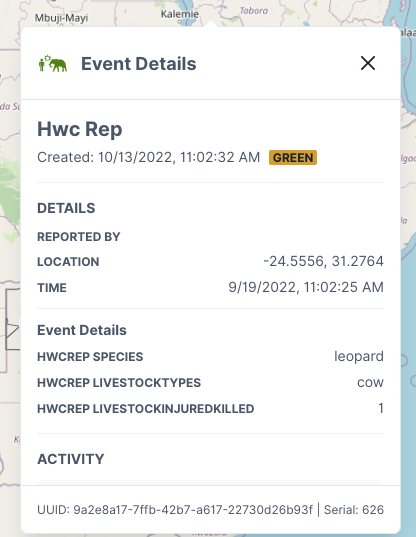

2. An event detail panel will open, showing:
   - Event title and status
   - Reported by – Name of reporter
   - Location – Coordinates
   - Time – Event occurrence date/time
   - Additional details – Species, livestock affected, injuries/kills, comments, village name, etc.
