10. Task Status Monitoring System¶

10.1 Overview¶

The Task Status Monitoring System provides automated monitoring of background Celery tasks and sends email notifications when tasks don't reach expected statuses within specified time windows. This helps administrators proactively detect and respond to task failures or delays.

10.2 Key Features¶

• Automated Status Checking - Monitor multiple tasks with customizable status expectations
• Lookback Window - Configurable time window for checking task execution
• Email Notifications - HTML email alerts with detailed task information
• Dependent Task Warnings - Track and warn about downstream task impacts
• Flexible Recipients - Custom email lists or automatic superuser fallback
• Context Validation - Advanced filtering by task context type (e.g., specific ingestor types)

10.3 Configuration Format¶

The monitoring task accepts a configuration dictionary that maps task names to their monitoring settings:

{
    "task_name": {
        "expected_statuses": ["Completed"],           # Required
        "notify_to": ["admin@example.com"],           # Optional
        "dependent_tasks": ["Task Y", "Task Z"],      # Optional
        "lookback_hours": 1,                          # Optional, default: 1
        "context_model": "gap.models.IngestorSession", # Optional (advanced)
        "context_type": "Hourly Tomorrow.io"          # Optional (advanced)
    }
}

10.3.1 Configuration Parameters¶

10.3.2 Available Task Statuses¶

The following status values can be used in expected_statuses:

• Pending - Task submitted but not queued
• Queued - Task queued for execution
• Running - Task currently executing
• Completed - Task finished successfully
• Stopped - Task stopped with error
• Cancelled - Task was cancelled
• Invalidated - Task was invalidated for retry

Common configurations: - ["Completed"] - Only accept successful completion - ["Completed", "Running"] - Accept if completed or still running - ["Completed", "Stopped"] - Accept both success and failure (for monitoring only)

10.4 Lookback Hours Explanation¶

The lookback_hours parameter defines the time window for checking task execution history. It determines how far back the system should look when searching for the most recent task execution.

10.4.1 How It Works¶

When a monitoring check runs: 1. Calculate the lookback threshold: current_time - lookback_hours 2. Query for the most recent task with started_at >= lookback_threshold 3. Check if the status matches expected values 4. Send notification if no task found or status doesn't match

10.4.2 Choosing Appropriate Lookback Windows¶

Guidelines:

Best Practices:

1. Make it slightly longer than task interval
2. For a task expected every hour, use lookback_hours: 1.5 or 2

3. This accommodates normal variations in task duration

4. Account for delays

5. If tasks occasionally take longer, increase the window

6. Example: A task usually completes in 30 min but sometimes takes 2 hours → use lookback_hours: 3

7. Consider monitoring frequency

8. If you check every hour, lookback of 1 hour is usually sufficient

9. If you check less frequently, increase the lookback window proportionally

10. Use decimal values for precision

11. lookback_hours: 1.5 checks last 1.5 hours (90 minutes)
12. Useful for fine-tuning monitoring windows

Examples:

# Hourly task checked 5 minutes after expected completion
{
    "hourly_data_sync": {
        "expected_statuses": ["Completed"],
        "lookback_hours": 1  # Check last hour
    }
}

# Daily task with variable duration
{
    "daily_report": {
        "expected_statuses": ["Completed"],
        "lookback_hours": 25  # Check last 25 hours (daily + buffer)
    }
}

# Bi-hourly task with tolerance
{
    "data_processing": {
        "expected_statuses": ["Completed", "Running"],
        "lookback_hours": 2.5  # Check last 2.5 hours
    }
}

10.5 Creating Periodic Tasks via Django Admin¶

10.5.1 Step 1: Access Django Admin¶

Navigate to: Django Admin → Periodic Tasks → Add Periodic Task

10.5.2 Step 2: Configure Basic Settings¶

Name: Give your monitoring task a descriptive name Example: Monitor Critical Data Collection Tasks

Task (registered): Type or select monitor_task_status Note: You may need to type this manually if it doesn't appear in the dropdown

Enabled: ✓ Check this box to activate monitoring

10.5.3 Step 3: Configure Arguments¶

The Arguments field accepts JSON array with one dictionary containing your monitoring configuration:

[
  {
    "task_name_1": {
      "expected_statuses": ["Completed"],
      "notify_to": ["admin@example.com"],
      "dependent_tasks": ["task_name_2"],
      "lookback_hours": 1
    },
    "task_name_2": {
      "expected_statuses": ["Completed"],
      "lookback_hours": 2
    }
  }
]

Important: The JSON must be an array containing a single dictionary (note the outer [ and ]).

10.5.4 Step 4: Configure Schedule¶

Option A: Crontab Schedule

Click "Create new Crontab Schedule" or select existing:

Option B: Interval Schedule

For simpler intervals like "every X minutes/hours": - Every 30 minutes: Period=30, Unit=Minutes - Every 2 hours: Period=2, Unit=Hours

10.5.5 Step 5: Save¶

Click Save to activate the monitoring task.

10.6 Example JSON Configurations¶

10.6.1 Example 1: Simple Hourly Task Monitoring¶

Monitor a single hourly task, check 5 minutes after expected completion:

[
  {
    "hourly_data_sync": {
      "expected_statuses": ["Completed"],
      "notify_to": ["data-team@example.com"],
      "lookback_hours": 1
    }
  }
]

Crontab: 5 * * * * (every hour at :05)

10.6.2 Example 2: Multiple Tasks with Dependencies¶

Monitor a data pipeline with dependent tasks:

[
  {
    "data_collection": {
      "expected_statuses": ["Completed"],
      "notify_to": ["ops@example.com"],
      "dependent_tasks": ["data_processing", "data_export"],
      "lookback_hours": 1
    },
    "data_processing": {
      "expected_statuses": ["Completed", "Running"],
      "dependent_tasks": ["data_export"],
      "lookback_hours": 2
    },
    "data_export": {
      "expected_statuses": ["Completed"],
      "lookback_hours": 3
    }
  }
]

Crontab: */30 * * * * (every 30 minutes)

10.6.3 Example 3: Daily Tasks with Fallback to Superusers¶

Monitor daily tasks without specifying recipients (uses superusers):

[
  {
    "daily_report_generation": {
      "expected_statuses": ["Completed"],
      "lookback_hours": 25
    },
    "daily_cleanup": {
      "expected_statuses": ["Completed"],
      "lookback_hours": 24
    }
  }
]

Crontab: 5 9 * * * (daily at 9:05 AM UTC)

10.6.4 Example 4: IngestorSession with Context Validation (Advanced)¶

Monitor specific ingestor type execution:

[
  {
    "ingestor_session": {
      "context_model": "gap.models.IngestorSession",
      "context_type": "Hourly Tomorrow.io",
      "expected_statuses": ["Completed"],
      "notify_to": ["weather-team@example.com"],
      "dependent_tasks": ["forecast_processing"],
      "lookback_hours": 2
    }
  }
]

Crontab: 5 */2 * * * (every 2 hours at :05)

10.7 Notification Recipient Logic¶

The system determines email recipients using the following logic:

10.7.1 Priority Order¶

1. Custom Recipients - If notify_to is specified and not empty
2. Emails are sent to the specified addresses

3. Superusers are NOT included automatically

4. Superuser Fallback - If notify_to is not specified or empty

5. System fetches all superuser emails from Django User model

6. Only superusers with valid, non-empty email addresses are included

7. No Recipients Error - If both conditions fail

8. A ValueError exception is raised
9. The full email content is logged to error logs
10. Task monitoring fails with clear error message

10.7.2 Recipient Resolution Examples¶

Example 1: Custom Recipients

"notify_to": ["admin@example.com", "devops@example.com"]

Example 2: Empty notify_to (Superuser Fallback)

"notify_to": []  # or not specified

Example 3: No Recipients Available

"notify_to": []  # Empty
# AND no superusers exist

10.7.3 Setting Up Superusers¶

If you want to use the superuser fallback:

python manage.py createsuperuser

Ensure the superuser has a valid email address during creation.

10.7.4 Best Practices¶

1. Use explicit notify_to for critical tasks
2. Ensures specific people are notified

3. Not dependent on superuser configuration

4. Use superuser fallback for general monitoring

5. Automatic recipient management

6. New superusers automatically receive notifications

7. Always have at least one notification method

8. Either specify notify_to OR ensure superusers exist
9. System will raise error if neither is available

10.8 Email Notifications¶

10.8.1 Email Content¶

Notification emails include:

• Task name - Identifies which task has an issue
• Current status - Actual status found (or "No execution found")
• Expected status(es) - What statuses were acceptable
• Lookback window - Time window checked (e.g., "Last 1 hour(s)")
• Execution times - When task last started/finished (if available)
• Check timestamp - When the monitoring check was performed
• Dependent tasks warning - Tasks that may be affected (if specified)

10.8.2 Email Scenarios¶

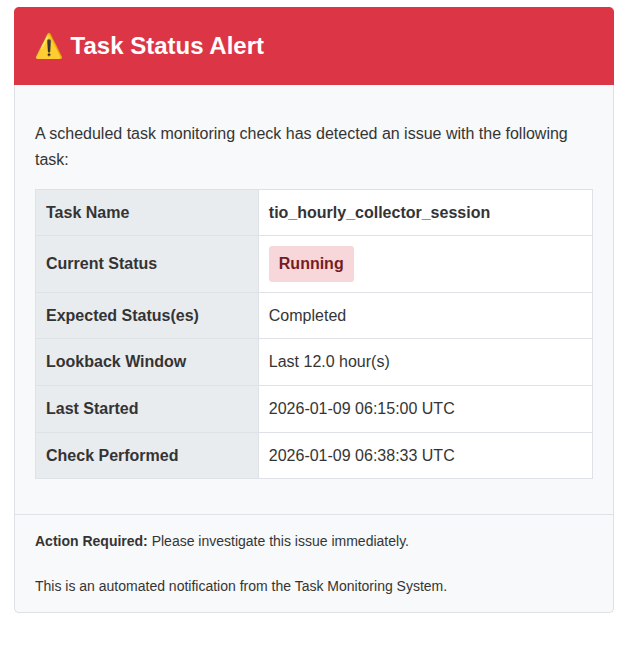

10.8.2.1 Scenario 1: Status Doesn't Match Expected¶

When a task is found but has wrong status:

Subject: [ALERT] {task_name} Status Check Failed

Key Information: - Shows actual status vs expected status - Includes execution timestamps - Provides lookback window context

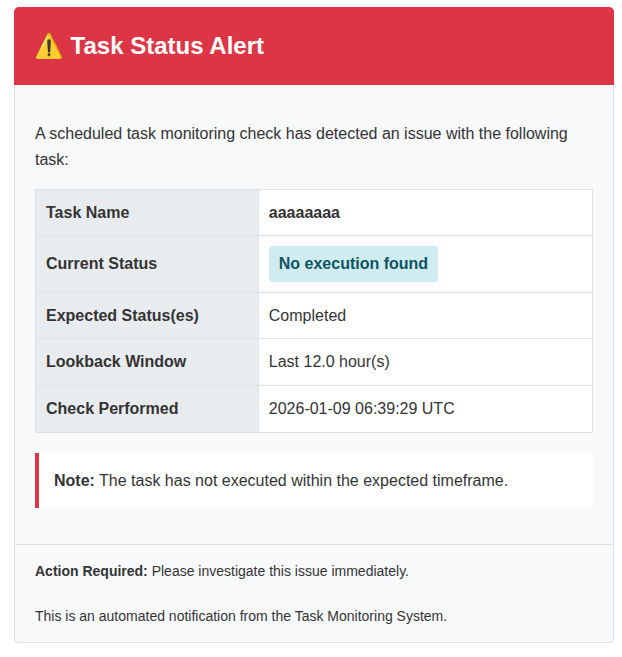

10.8.2.2 Scenario 2: Task Hasn't Executed¶

When no task execution found within lookback window:

Subject: [ALERT] {task_name} Has Not Executed

Key Information: - Clear "No execution found" status - Shows the time window checked - Note about task not executing within expected timeframe

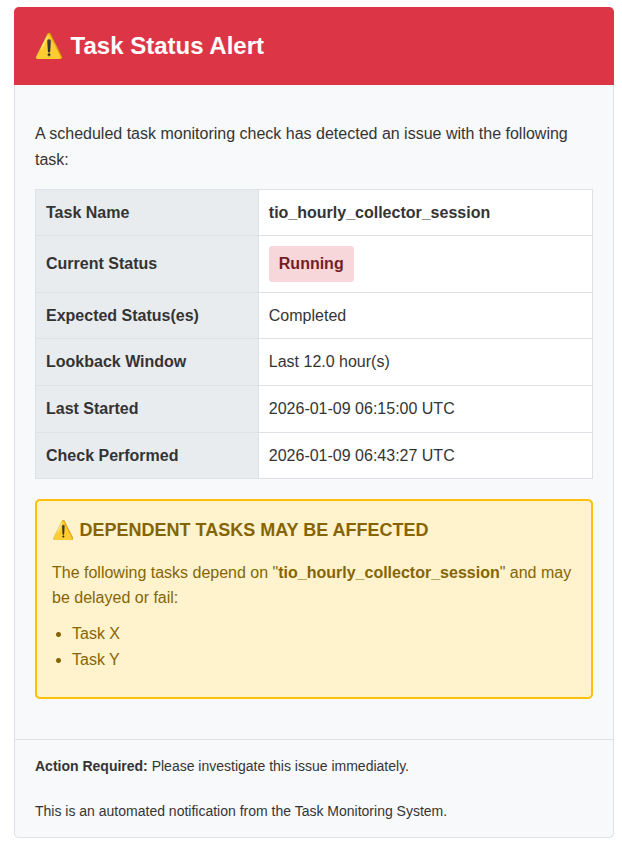

10.8.2.3 Scenario 3: Dependent Tasks Warning¶

When a task with dependencies fails:

Subject: [ALERT] {task_name} Status Check Failed

Key Information: - All standard task information - Warning box highlighting dependent tasks - List of tasks that may be delayed or fail

10.8.3 Email Subjects¶

The system uses different subject lines based on the scenario:

• Status mismatch: [ALERT] {task_name} Status Check Failed
• No execution: [ALERT] {task_name} Has Not Executed

10.9 Email Template Customization¶

The HTML email template is located at:

django_project/frontend/templates/emails/task_status_alert.html

10.9.1 Customizing the Template¶

1. Edit the template file at the path above
2. Maintain the context variables used in the template
3. Test thoroughly with your email client

10.9.2 Available Template Variables¶

10.9.3 Example Template Customization¶

Add your company logo:

<div class="header">
    <img src="https://yourcompany.com/logo.png" alt="Logo" style="height: 40px;">
    <h1>⚠️ Task Status Alert</h1>
</div>

Customize colors:

.header {
    background-color: #your-brand-color;
    color: white;
}

Add custom footer:

<div class="footer">
    <strong>Action Required:</strong> Please investigate immediately.
    <br><br>
    Contact: support@yourcompany.com | Internal Docs: https://wiki.yourcompany.com/monitoring
</div>

10.9.4 Testing Your Template¶

# Start Django shell
python manage.py shell

# Test the template rendering
from gap.tasks.monitoring import _send_notification
from django.utils import timezone

# This will attempt to send a test email
# Ensure you have email configured or use console backend for testing

10.10 Troubleshooting¶

10.10.1 Issue: Task Not Appearing in Django Admin Dropdown¶

Solution: Manually type monitor_task_status in the "Task (registered)" field.

The task may not appear in the dropdown initially but will work when typed manually.

10.10.2 Issue: Notifications Not Being Sent¶

Checklist: 1. ✓ Is the periodic task enabled in Django Admin? 2. ✓ Is Celery Beat running? 3. ✓ Are there superusers with email addresses (if notify_to not specified)? 4. ✓ Check Celery logs for errors 5. ✓ Verify email configuration in Django settings

Debug Test:

python manage.py shell

from gap.tasks.monitoring import monitor_task_status

config = {
    "test_task": {
        "expected_statuses": ["Completed"],
        "lookback_hours": 24
    }
}

result = monitor_task_status(config)
print(result)

10.10.3 Issue: ValueError - "notify_to is empty but no superuser found"¶

Cause: No recipients configured and no superusers exist.

Solutions:

1. Add email addresses to config:

   {
     "task_name": {
       "expected_statuses": ["Completed"],
       "notify_to": ["admin@example.com"]
     }
   }


2. Create a superuser:

   python manage.py createsuperuser


What happens: The full email content is logged to error logs before the exception is raised.

10.10.4 Issue: Task Found But Status Not Matching¶

Check: - Verify task name exactly matches BackgroundTask.task_name - Check if lookback window is appropriate - Review task execution logs

Query BackgroundTask directly:

from core.models.background_task import BackgroundTask
from django.utils import timezone
from datetime import timedelta

lookback = timezone.now() - timedelta(hours=1)
tasks = BackgroundTask.objects.filter(
    task_name='your_task_name',
    started_at__gte=lookback
).order_by('-started_at')

for task in tasks:
    print(f"{task.started_at}: {task.status}")

10.10.5 Issue: No Task Found in Lookback Window¶

Possible causes: - Task hasn't run recently - Lookback window too short - Task name mismatch

Solutions: - Increase lookback_hours - Verify exact task name (case-sensitive) - Check BackgroundTask table for task execution history

10.11 Advanced: Context Model Validation¶

For tasks that use context models (like IngestorSession or CollectorSession), you can validate the context type to monitor specific task variants.

10.11.1 Use Case¶

You want to monitor specifically "Hourly Tomorrow.io" ingestion, not all ingestor sessions.

10.11.2 Configuration¶

{
  "ingestor_session": {
    "context_model": "gap.models.IngestorSession",
    "context_type": "Hourly Tomorrow.io",
    "expected_statuses": ["Completed"],
    "lookback_hours": 2
  }
}

10.11.3 How It Works¶

1. Finds most recent ingestor_session BackgroundTask
2. Gets the associated IngestorSession instance using context_id
3. Validates that ingestor_type == "Hourly Tomorrow.io"
4. Only checks status if context validation passes

10.11.4 Supported Context Models¶

10.12 Best Practices¶

10.12.1 1. Start Simple¶

Begin with basic monitoring for critical tasks:

{
  "critical_task": {
    "expected_statuses": ["Completed"],
    "notify_to": ["admin@example.com"],
    "lookback_hours": 2
  }
}

10.12.2 2. Use Descriptive Periodic Task Names¶

Good: Monitor Hourly Data Collection Tasks Bad: Task Monitor 1

10.12.3 3. Set Appropriate Schedules¶

• Check 5-10 minutes after expected task completion
• For hourly tasks expected at :00, check at :05 or :10
• Don't check too frequently (wastes resources)

10.12.4 4. Document Dependencies¶

Always list dependent_tasks to help responders understand impact:

{
  "data_collection": {
    "dependent_tasks": ["data_processing", "report_generation"]
  }
}

10.12.5 5. Test Before Production¶

1. Create test periodic task with short interval
2. Verify emails are received
3. Check email formatting
4. Adjust configuration as needed

10.12.6 6. Monitor the Monitor¶

• Set up alerting if monitoring tasks themselves fail
• Review Celery Beat logs regularly
• Ensure monitoring tasks are running

10.12.7 7. Use Appropriate Lookback Windows¶

Refer to the 10.4 Lookback Hours Explanation section for guidelines.

10.13 Complete Example Workflow¶

10.13.1 Scenario: Monitor Daily Report Generation¶

Task Details: - Task runs daily at 8:00 AM UTC - Usually completes within 30 minutes - Creates reports used by management team - Dependent on data collection tasks

Step 1: Create Periodic Task

Name: Monitor Daily Report Generation

Step 2: Configure Arguments

[
  {
    "generate_daily_report": {
      "expected_statuses": ["Completed"],
      "notify_to": ["reports-team@example.com", "management@example.com"],
      "dependent_tasks": ["send_report_emails", "update_dashboard"],
      "lookback_hours": 2
    }
  }
]

Step 3: Set Schedule

Crontab: 35 8 * * * (8:35 AM UTC - 35 minutes after expected completion)

Step 4: Enable and Save

✓ Check "Enabled" box and save

Step 5: Monitor Results

• Check Celery logs for monitoring execution
• Verify emails are received when tests fail
• Adjust lookback_hours if needed
